Ship Center

Advanced vessel design and construction meeting international standards for performance and safety.

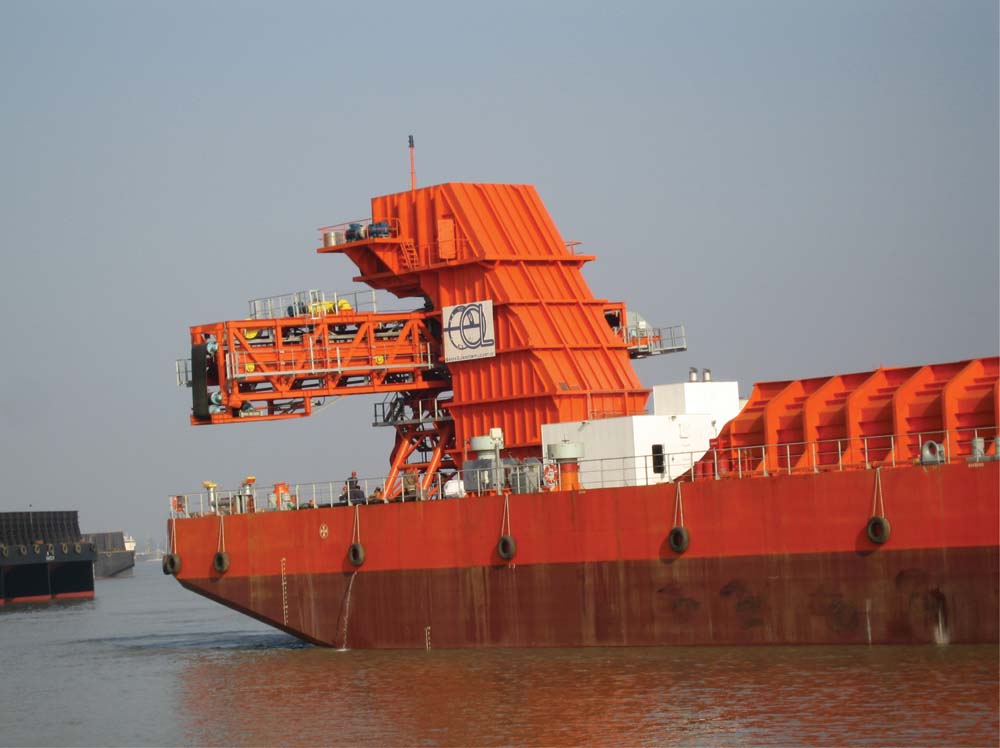

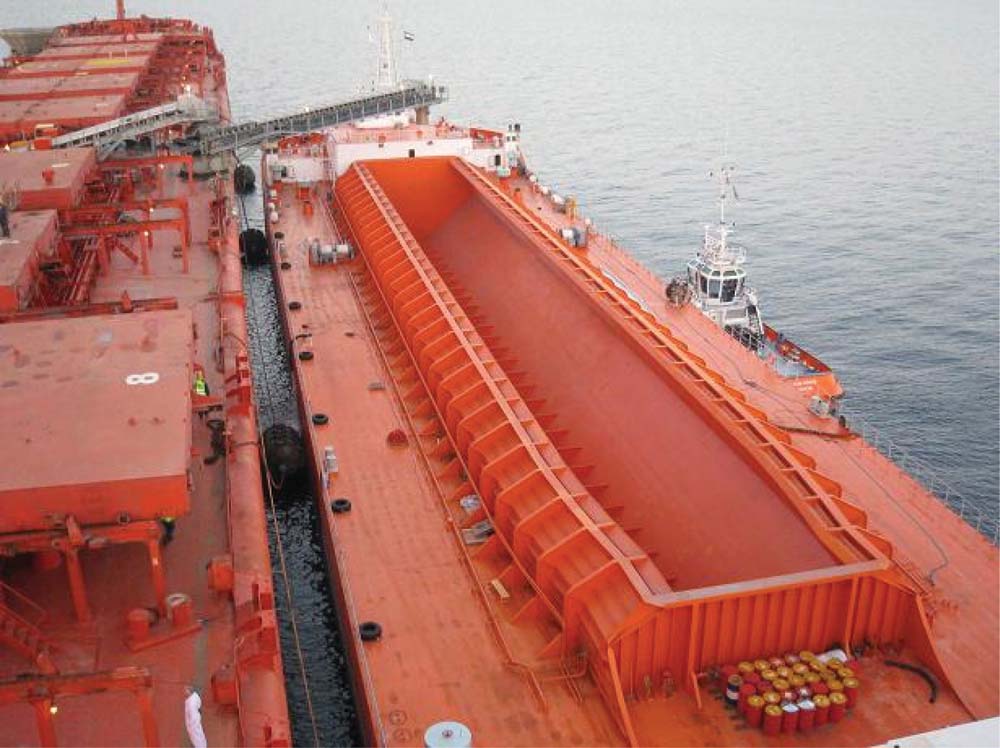

Automatic unloading ship

Self-Unloading Ship

Overall Length: 130M

Beam: 27.5M

Depth: 8.00M

Draft: 5.87M

Deadweight: 12,000 TON

Speed: 7kn

Classification: Lloyd's Register, UK

Ship Owner Nationality: Germany

Main Equipment: 4 Omega thrusters, 2 Caterpillar generators

Self-Unloading System: EMS-TECH INC., Canada

Contact Us
·PRODUCT





recommend products

You may also like it

35000DWT BULK Carrier
35000DWT BULK Carrier Particulars: Loa:179.90M Lbp:171.50M B: 28.4M D: 15.00M Design Draft: 10.00M Main Engine: MAN B&W 6S50MC-C MCR: 9480KW@127RPM Speed: 14KN @ 90% MCR Classification: BV Owner: German

More Detail

17000DWT BULK Carrier
17000DWT BULK Carrier Particulars: Loa:131.20M B: 22.00M D: 14.5M Design draft: 9.6M Main Engine: STX 6S35 MCR: 6060KW Crane: 3*30ton Classification: KR Owner: Korea

More Detail

74,000 DWT Bulk Carrier - Panamax
74,000 DWT Bulk Carrier - Panamax Classification: ABS (American Bureau of Shipping) Length Overall: 225.00 m Beam: 32.30 m Depth: 19.2 m Speed: 14.4 knots @ 85% CSR Main Engine: MAN B&W 5S60MC Engine Power: 13,900 kW @ 105 rpm

More Detail

300-guest residential work barge / NSC GLORY

More Detail

400-passenger living and working barge/NSC FORTUNE

More Detail

360 Guest Living and Working Barge/NSC 3003

More Detail

94M Floating loading facilty barge
94M Floating loading facilty barge Particulars: Loa: 94.00M B: 32.30M D: 7.5M Main Engine: 3*1200KW Speed: 5.5KN DWT: 10500DWT Classification: RINA/RS Owner: Italy

More Detail

6,000BHP Tug
6,000BHP Tug Particulars: Length (O.A) : 61.30M Length B.P : 55.80M Breadth (MID): 13.80M Depth (MID): 6.40M Summer Draft : 4.90M Bollard Pull: 69MT Deck Load: 6.5MT/M2 Deadweight: 1000 MT at 4.9m draft Speed on loaded : 12.0 knot Accomodation:27 persons

More Detail

60m FSO SUPPLY/SUPPORT VESSEL
60m FSO SUPPLY/SUPPORT VESSEL Particulars: Loa:60M B: 13.30M D: 6.00M Design draft: 4.50M Complement: 46 Fuel oil : 520 M3 Fresh water: 400 M3 Clear deck area 5t/M2 : 350 M2 Total power: 2X 2610 PS Bollard pull: 60 TONNES Speed: 13 KNOTS CLASS ABS

More Detail

69.9M PLATFORM SUPPLY VESSEL
69.9M PLATFORM SUPPLY VESSEL Particulars: Loa:69.90M Lbp:61.20M B: 16.60M D: 6.80M Design draft: 5.80M Complement: 50 Deck Cargo Space: 560M2 Deadweight: 3000T At design draft Main Engine: 2X 2500HP Medium speed Speed: 12KN Classification: ABS Owner: Singapore

More Detail

100m/120m Accommodation /Derrick pipe lay barge
Particulars: 100m Accommodation /Derrick pipe lay barge L 100.00 m B 33.00 m D 7.60 m Complement 300 P Deck loading of cargo area 15 T/m2 Fuel oil capacity ~1030 m3 Fresh water capacity ~1900 m3 Classification: BV 120m Accommodation /Derrick pipe lay barge Loa:127.32M B: 38.90M D: 9.00M Design draft: 6.00M Complement: 300 Classification: ABS Owner: Singapore

More Detail

110M Floating loading facility barge
110M Floating loading facility barge Particulars: Loa: 110.00M B: 30.00M D: 6.4M Main Engine: 3*1270KW Loading: 3000t/h Classification: BV Owner: Singapore

More Detail

4000T Floating Crane
4000T Floating Crane Particulars: Loa:120.00M B: 48.00M D: 8.00M Working draft: 4.80M Complement: 36 Classification: CCS Owner: China

More Detail

crane barge
Crane Barge Overall length: 60M Beam: 22.60M Depth: 5.00M Draft: 3.50M Load: 2400 Tons Class: Italian Classification Society Lifting capacity: 40 Tons Main engines: 2 x 1100KW main generators 2 x 330KW mooring generators

More Detail

Offshore Deck Barge/NSC3303/SARENS

More Detail

Offshore Deck Barge/NSC4006/SARENS

More Detail

71,000 DWT crude oil tanker
Ship type: Panamax 71,000 DWT crude oil tanker Classification: American Bureau of Shipping Overall length: 227.00 m Beam: 32.30 m Depth: 19.5 m Speed: 15 kn @ 85% CRS Main engine: MAN B&W 5S60MC Main engine power: 13,900 hp @ 105 rpm

More Detail

20000DWT Semi-Refrigerated Ethylene/Propane/Ammonia/Vinyl Chloride Ship
20000DWT Semi-Refrigerated Ethylene/LPG/Ammonia/Vinyl Chloride Vessel Ship Type: LPG Carrier Class: GL Length Overall: 171.50M Beam: 24.20M Depth: 16.7M Speed: 16.5kn @ 90% MCR Main Engine: NEW SULZER 6RTA52 Main Engine Power: 8520kw @ 130rpm

More Detail

DWT Refined Oil/Chemical Tanker
16400 DWT Product Oil/Chemical Tanker Ship Type: Chemical/Oil Tanker Class: DNV (Det Norske Veritas) Length Overall: 144.00 m Beam: 23.00 m Depth: 12.4 m Speed: 14.8 kn @ 85% MCR Main Engine: Wartsila 6L64C Engine Power: 6300 kW @ 500 rpm

More Detail

13,700 DWT product tanker
13700 DWT Product Tanker Overall Length: 129.8M Beam: 20.4M Depth: 11.5M Main Engine Power: 6060KW Speed: 15.3KN Deadweight: 13700DWT Classification: Korean Register / Italian Register Owner Nationality: South Korea

More Detail

51000 DWT (1865 TEU) Multipurpose Container/Bulk Carrier
51000 DWT (1865 TEU) Container and Bulk Carrier Ship Type: Multipurpose Vessel Classification: Norwegian Classification Society Length Overall: 196.30 m Beam: 32.26 m Depth: 19.50 m Speed: 15 kn @ 85% MCR Main Engine: Sulzer 7RTA52U or similar Engine Power: 11000 kW @ 135 rpm

More Detail

10,600 DWT product tanker
10600 DWT Product Oil Tanker Overall length: 123M Beam: 19.4M Depth: 10.7M Main engine power: 3900KW Speed: 15.5KN Deadweight: 10600 DWT Classification: Korean Register/Italian Register Owner nationality: South Korea

More Detail
